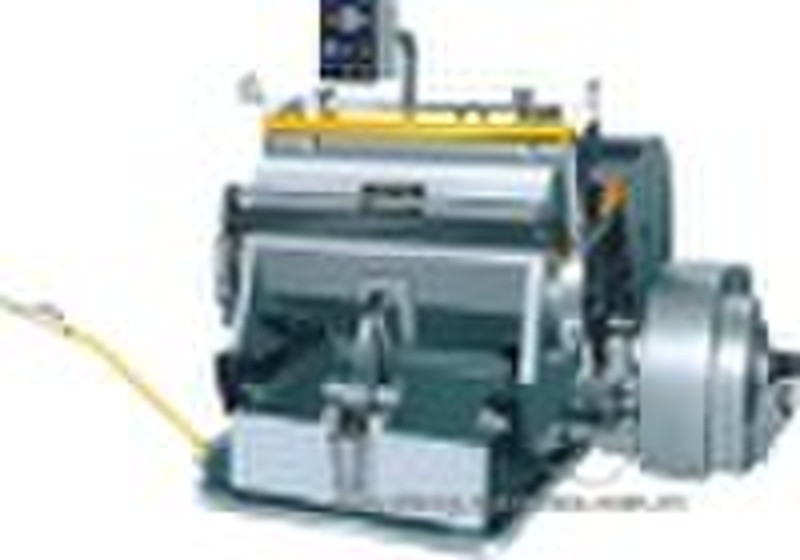

Die Cutting Machine

MAJOR CONSTRUCTION FEATURES: - High strength, due to one piece casting by using top quality rolled steel for machine body. - Smooth running, big pressure and low noise result from helical gear mechanism adopted. - The microelectronic parts is used in electric control box so it can give rise to clear display, accurate time delay, precise counting and powerful memory function. - Electrical system is designed in accordance with IEC standard. - Be of such three functions as single, continuous operation and opening delay. In addition of the above three functions, the creasing and cutting machine model ML-1040B,ML-1092B and ML-1400 can perform single closing delay, continuous closing delay, continuous closing and opening delay function. - Protection system is reliable. - Centralized lubricating system. - Error prevention and indication system equipped. ModelML1100ML1200Max.rule length35m35mInner chase size1100× 800mm1200× 820mmSpeed20± 2 Strokes/min20± 2 Strokes/minPackagedimension1860× 1760 × 1700mm1960× 1860 × 1750mmOverall weight4500kg5000kgMotor power5.5kw5.5kw
